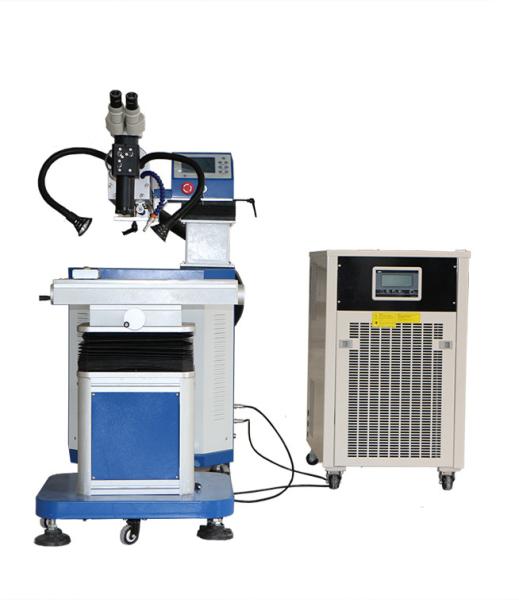

    Automatic Battery Mould Laser Welding Machine Low Noise 1024 Nm Wavelength

    Ask Lasest Price
    Brand Name : Yubang
    Model Number : YB-M001
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200, set , month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Automatic Battery Mould Laser Welding Machine Low Noise 1024 Nm Wavelength

    Automatic Metal Battery Mould Repairing Fiber Laser Spot Welding Machine

    Automatic Battery Mould Laser Welding Machine Low Noise 1024 Nm Wavelength

    Description:

    1. By welding workpiece axis X/Y/Z/D for stepping drive, meet the needs of the big trip.

    2. Repeated positioning precision, fast welding speed and high efficiency.

    3. Can weld, straight line, round, oval, square planar arbitrary trajectory, etc.

    4. High power laser power supply to meet mass production 24 hours a day.

    5. Automatic focus and rotation function weld products of any shape 3D space.

    6. Tailored four axes linkage control system for laser welding, stable performance and easy to get started.


    Product Application:


    This laser welding machine can not only be used for molds repairing/re-shaping, but also for the precision welding of small articles, such as jewelry, electronics, telecommunication devices, electrical hardware, watch and clocks components, products of military industry, etc.


    Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.


    Introduction

    Laser welder was originally designed for mould industry for molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, molds of digital products/mobile phone/toy/automobile/motorcycle/etc. By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mold which saves production cost and improves working efficiency significantly. General laser mould welder also can be used in metal sheet stitching welding, pipe/ tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc.


    Technical Date:


    ModelYB-M001 (Mould laser welding machine)
    Laser power200w 400w
    Spot the adjust range0.1-3.0mm
    Laser wavelength1064nm
    Frequency welder0-100Hz
    Control cabinet size700*1450*1680mm
    Pulse width0.2 -20ms
    VoltageAc220v 50Hz 5A
    Cooling systemWater cooling
    Power consumption9KW-12kw
    CavityCeramic Cavity
    Cabinet ColorBlue And White
    Supported charactersAny fonts downloaded on computer
    Supported formatDWG, DFX, BMP, JPG, PNG, TIF, PCX, TAG, GIF, PLT etc..
    Supported Bar code

    CODE39, EAN, CODE128, Data Matrix, PDF417 etc..


    Product Description:

    1. Red point fast positioning, CCD display, microscope optional


    2. Adjustable working table allows welding from small size to big size of work piece


    3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope


    4. Slight distortion and affect by heating.


    5. Capable of partial heating process.


    6. Able to weld with complex, profiled, or tiny letters.


    7. Low noise and no pollution.


    8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position


    9. New metal processing (laser welding) technology brings higher quality of end products. 10. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding


    11. Laser cavity can move left and right, up and down easily for more space when welding big letters


    12.The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option


    Main Feature

    • Using advanced automatic light shielding system, eliminating the light stimulating to eyes
    • Small heat-affected zone, expertise and beautiful welding spot, without excessive handling after welding
    • Multiple observing system
    • Soft laser beam for best molten pool
    • User friendly digital message display for easy control

    Our Services:

    1) 1 year warranty for fiber laser marking machine. ( man-made damage is negotiable )

    2) Lifelong maintenance and spare parts supply.

    3) Free design of fixtures according to customers' requirement.

    4) Free marking samples and free training.

    5) The automatic device and production line are available.


    FAQ:


    Q: What's your warranty policy?
    A: We offer 2 year free overall warranty and life-time technical support to our customers .Thorough check will be done with the help of customer when any problem comes out. After professional diagnosis, we will send you any necessary part via international express and guide you how to replace them in the form of image or video. We’ll cover all the expenses relative.


    Q: Is this machine stable to use and is it complicated to maintain?
    A: YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.


    Q: How can I do if the machine goes wrong?

    A: If happens, you can contact our sales directly. We will offer engineer delivery service.

    But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!


    Before quotation, would you please let me know some items following?


    1. What's your main uses for it?


    2.What 's material and thickness of the your workpiece?


    3. Could you kindly send some pictures of your workpiece to me?


    Your answers will help us to confirm the most suitable model for you.

    For more specs , samples, price, delivery time and other need, please contact
